RV 16-2

Hydraulic Rotary Distributor with a Reach of 52.5 feet (16 m) for Precast Formworks

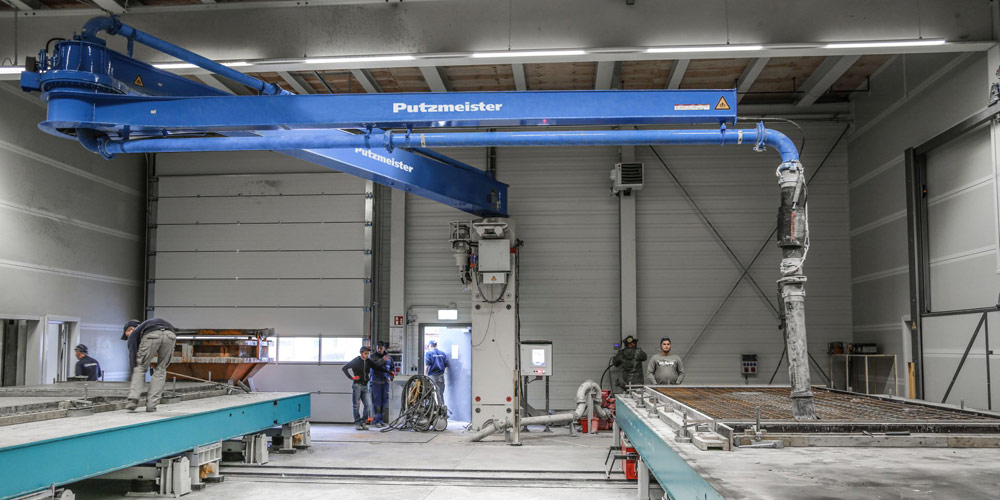

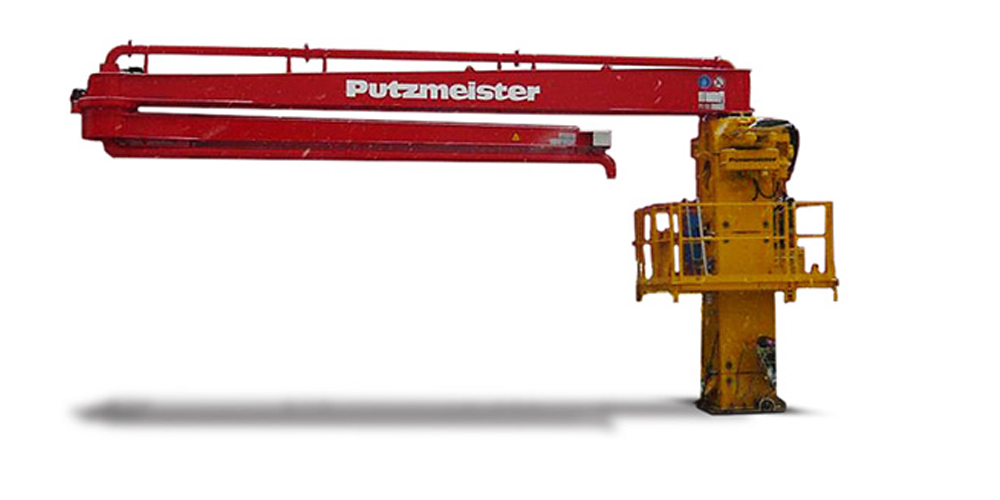

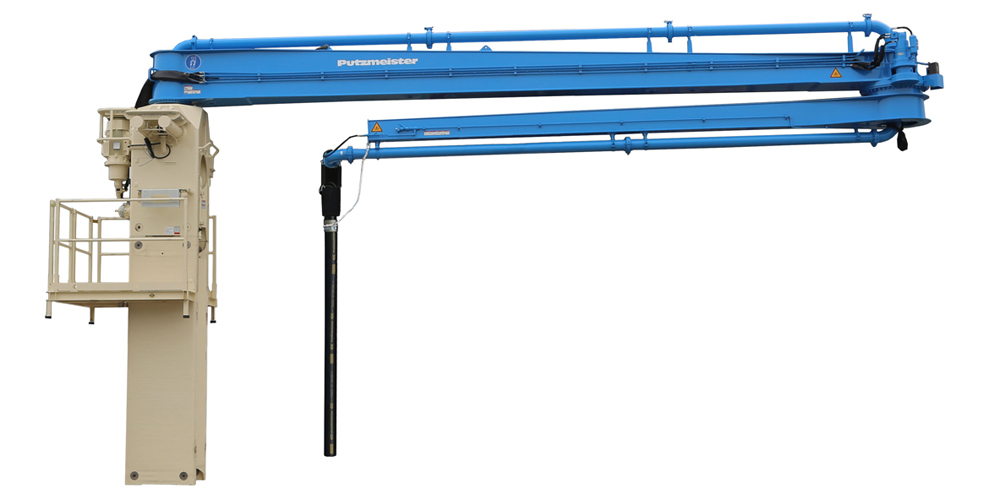

The rotary distributor RV 16-2 is ideal for precast formworks. It can be mounted temporarily for a project or mounted for extensive use. With its hydraulic moveable arms and 52.5 feet (16 m) reach, it is perfect for big formworks. Since it is mounted on a column, it takes very little space to store in the factory building.

Key Features

  • Can be slued hydraulically
  • Mounted on Putzmeister column system RS 850, Needs a footprint of only 3' 3" square (1x1 m)
  • Concreting area of up to 957 yd³ (800 m²) from one fixed location

Technical Details

General Information

  • Number of sections
    2
  • Horizontal Reach
    52'5 "
  • Placing area
    957 yd²
  • Delivery Line
    DN 125
  • Weight
    11905 lbs
